XCEL255 Pro

* cart not included

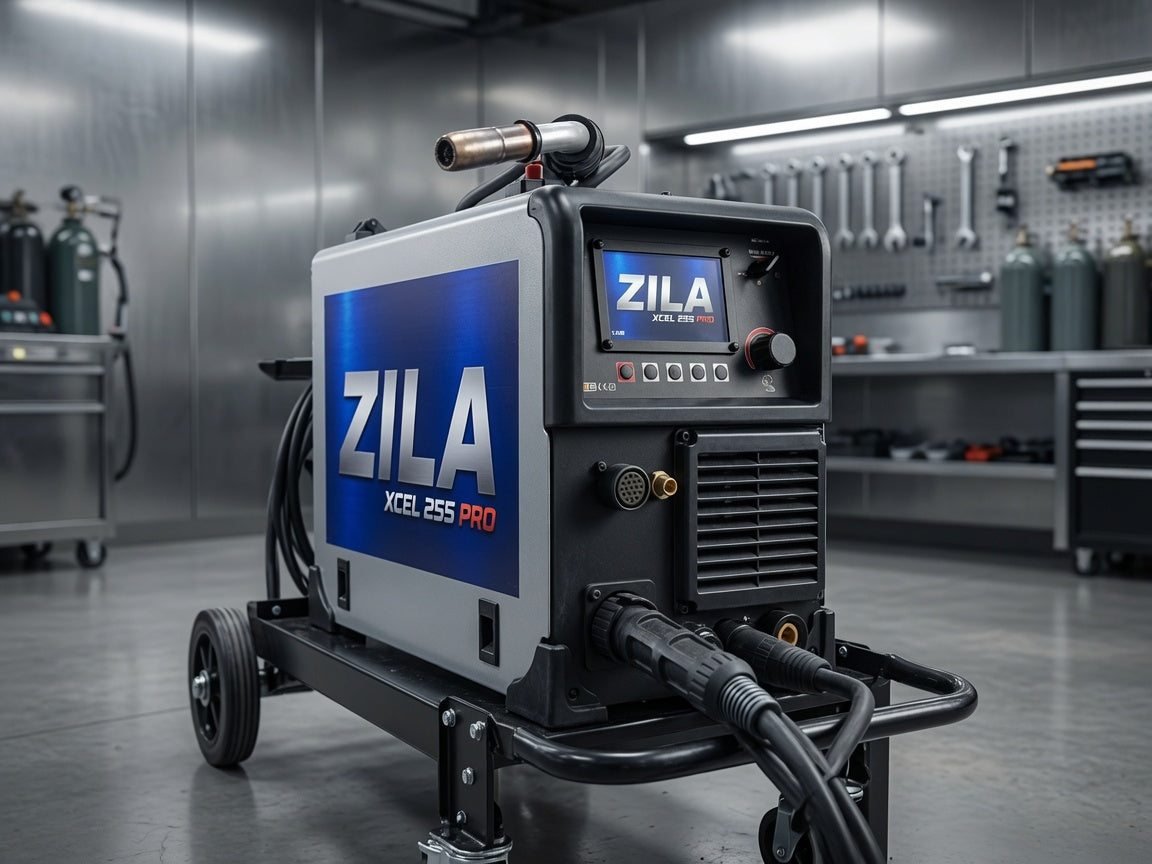

ZILA XCEL255 PRO – The Ultimate All-in-One Repair Machine

The XCEL255 PRO is built for professional welders and maintenance technicians who handle a wide variety of small to medium repair jobs every day. With 230 amp maximum output and full multi-process capability, this compact powerhouse delivers the versatility and performance you need — without tying up and lugging around larger equipment.

Package Options

Standard — $3,299:

• 10' MIG Gun for Steel, Stainless, Dual Shield and more — EURO Quick Disconnect, uses Miller® M25-compatible front end parts. Designed for steel welding, with a quick-disconnect feature.
• Steel drive roller (part# 63162) for .030"/.035" wire — comes pre-installed in the machine.
• 25 Series 9' MIG Gun for Aluminum — EURO Quick Disconnect. Designed for aluminum welding (MIG or Pulse MIG), with graphite liner and M8 tips alloyed to withstand high-amperage peak pulse currents.
• Aluminum drive roller for .035"/.047" wire (marked "A"), compatible with .035", .040", and .047" aluminum wire.
• Starter consumable kit for 24 and M25 series guns
• Victor flow gauge regulator
• 25' gas hose for MIG welding in the field
• 10' ground cable and clamp with 35 Dinse connection
• PVC spindle spacer

Complete Package — $3,999: Everything in the Standard package, plus:

• 25' 26 Series Heavy Hitter TIG torch with Dinse connection
• 25' foot pedal — controls welding current during TIG welding; can also be used to set MIG or Stick welding parameters
• Electrode holder with 15' cable, #2 cable, and 35 Dinse connection
• Starter consumable kit

Processes

• MIG (synergic + single and double pulse)
• Stick (with pulse)
• TIG (DC — HF & lift start, single and double pulse, sharp/soft/sine wave)

Materials

Steel • Stainless • Aluminum* • MIG Brazing • Cast Iron • Hard Surfacing

*Aluminum welding on this machine is performed via MIG or pulse MIG. This machine uses DC TIG — it does not have AC TIG output. If your application requires AC TIG for aluminum, this is not the right fit — and we'd rather tell you that upfront.

Key Features

• Don't let the multi-process label fool you — the TIG performance on this machine is the real story. DC single and double pulse, HF and lift start, and sharp/soft/sine wave control put this in the same conversation as dedicated professional TIG machines costing significantly more. If you've ever had to compromise TIG quality because you needed a do-it-all machine, that compromise ends here.
• Built-in wire feeder handles .030", .035", and .045" wires
• Fully pre-programmed synergic settings for fast, consistent results
• Intuitive interface — load wire, connect gas if needed, follow screen prompts, and weld
• Excellent cast iron repair workflow: Preheat → Weld → Peen → Post heat → Cool slowly
• Pulse Stick enables out-of-position welding with rods normally limited to flat/horizontal
• Works as a capable secondary machine on most engine drives (220/240V, 40A receptacle)
• Compact and portable — approximately 45 lbs without wire, similar in footprint to popular suitcase feeders

Power

• 230A maximum output
• 10,000W generator recommended for full output on engine drives

Recommended Consumables

As an authorized Rockmount Research & Alloys dealer, we sell the filler metals best matched to repair and maintenance welding. The XCEL255 PRO is optimized for this work — and so are the consumables we carry.

Best For

Field repairs, shop maintenance, equipment restoration, mobile welding, and light fabrication. When quality, versatility and excellence matter more than production volume, the XCEL255 PRO is the smart choice.

One machine. Every repair.
