Built for the professional shop.

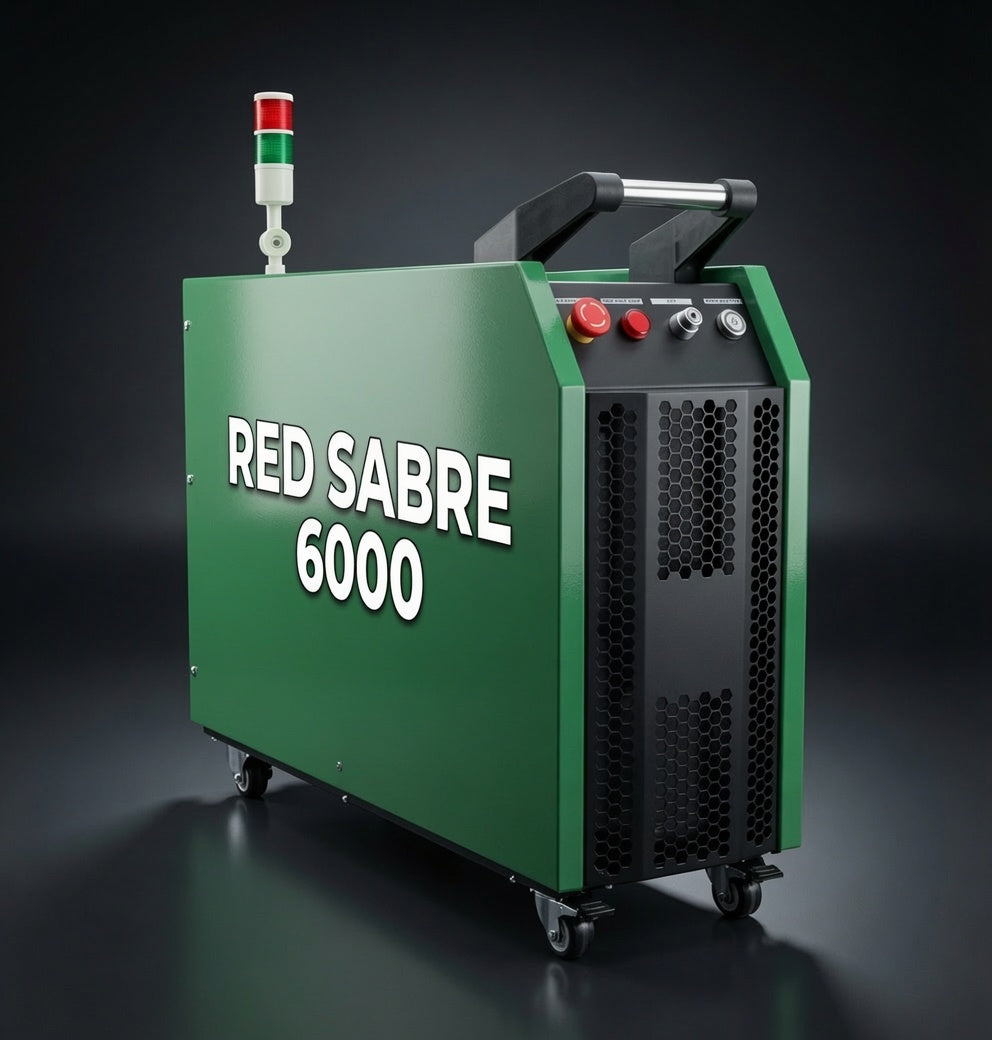

Elite-tier handheld laser welding, built for shops running the thickest material in the lineup. The RedSabre 6000 exceeds the 3/8in fusion depth barrier in a single pass, delivering high-quality welds at nearly 1/2in penetration with an included wire feeder for strong weld buildup.
ZILA is an authorized RedSabre dealer. Every system we sell is set up and verified before it reaches your shop, not a box you have to figure out on your own.
SPECIFICATIONS
Laser type: 6000W Fiber Laser, Class 4
Cooling: Water-cooled
Input power: 240V/480V, 3-phase, 23KVA rated input
Max weld thickness: Under 1/2in (12mm) mild/stainless steel, 5/16in (8mm) aluminum
Wire diameter: .030in - 1/16in (.062in)
Processes: Welding (autogenous capable)
Gas: Argon or Nitrogen
Gas flow rate: 30 CFH
Duty cycle: 100% continuous
Wire feeder: Included (optional dual feeder available for max weld width)
Travel speed: Up to 5 inches per second, thickness and settings dependent
Specs and pricing shown are preliminary and subject to confirmation. Contact ZILA to verify current specs before ordering.
