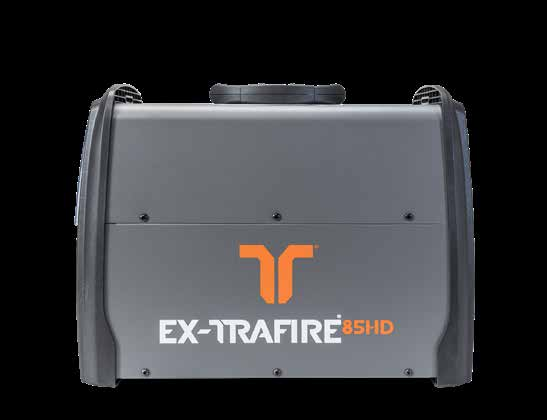

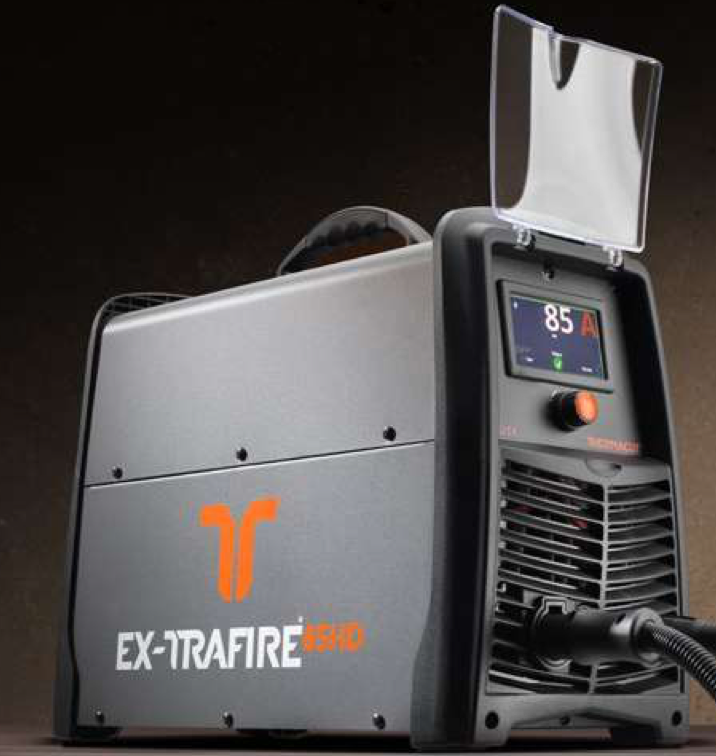

EX-TRAFIRE 85HD Plasma Cutting System
Built for the professional shop.
Industrial-grade plasma cutting built for shops that run hard, every day. The EX-TRAFIRE 85HD delivers clean, fast cuts across mild steel, stainless, and aluminum, with the portability to move from bay to bay and the duty cycle to keep up with real production, not just a spec sheet.
ZILA is an authorized EX-TRAFIRE dealer. Every system we sell is set up and verified before it reaches your shop, not a box you have to figure out on your own.
SPECIFICATIONS
Cutting current: 20-85 A
Output amperage range: 20-65 A on single-phase input, 20-85 A on three-phase input
Duty cycle: 100% @ 50 A (1x230V), 100% @ 54 A (3x208V), 100% @ 76 A (3x460-575V)
Rated output voltage: 140 VDC
Recommended cut capacity: 1 3/8 in
Severance cut capacity: 2 in
Piercing capacity: 1 in
Gouging removal: 17 lbs/hr
Plasma gas: Air, Nitrogen, or Argon
Input voltage: 1x200-240V / 3x208-575V AC, +/-15%
Dimensions (L x W x H): 22 in x 15.7 in x 10.2 in
Weight: 66 lbs
Protection level: IP23S
Torch: FHT-EX 105TT, hand or machine
Specs and pricing shown are preliminary and subject to confirmation. Contact ZILA to verify current specs before ordering.
