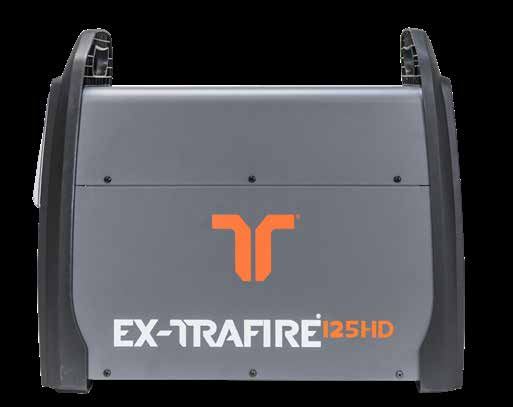

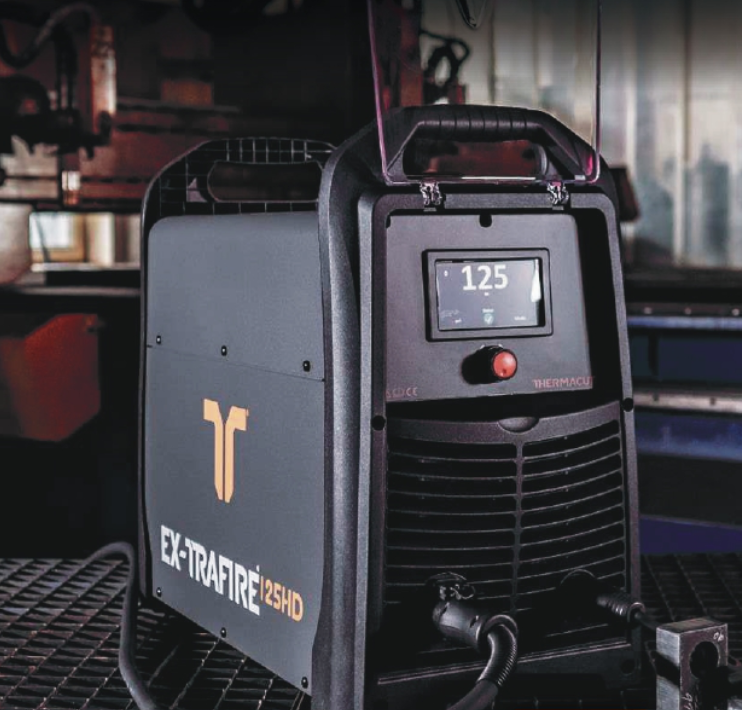

EX-TRAFIRE 125HD Plasma Cutting System
Built for the professional shop.
Industrial-grade plasma cutting built for shops that run hard, every day. The EX-TRAFIRE 125HD is the top of the HD line, engineered for the heaviest cutting jobs with a 100% duty cycle at full output. Three-phase power only, purpose-built for demanding industrial production.
ZILA is an authorized EX-TRAFIRE dealer. Every system we sell is set up and verified before it reaches your shop, not a box you have to figure out on your own.
SPECIFICATIONS
Cutting current: 30-125 A
Output amperage range: 30-125 A, three-phase input only (no single-phase option)
Duty cycle: 100% @ 125 A (104°F)
Rated output voltage: 180 VDC
Recommended cut capacity: 1 1/2 in
Severance cut capacity: 2 1/2 in
Piercing capacity: 1 in
Gouging removal: 17.6 lbs/hr
Plasma gas: Air, Nitrogen, or Argon
Input voltage: 3x480V AC or 3x575V AC, +/-15%
Dimensions (L x W x H): 24 in x 21 in x 12 in
Weight: 75 lbs
Protection level: IP23S
Torch: FHT-EX 125TT, hand or machine
Specs and pricing shown are preliminary and subject to confirmation. Contact ZILA to verify current specs before ordering.
