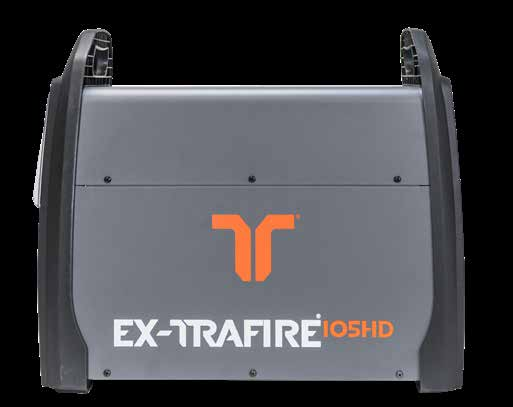

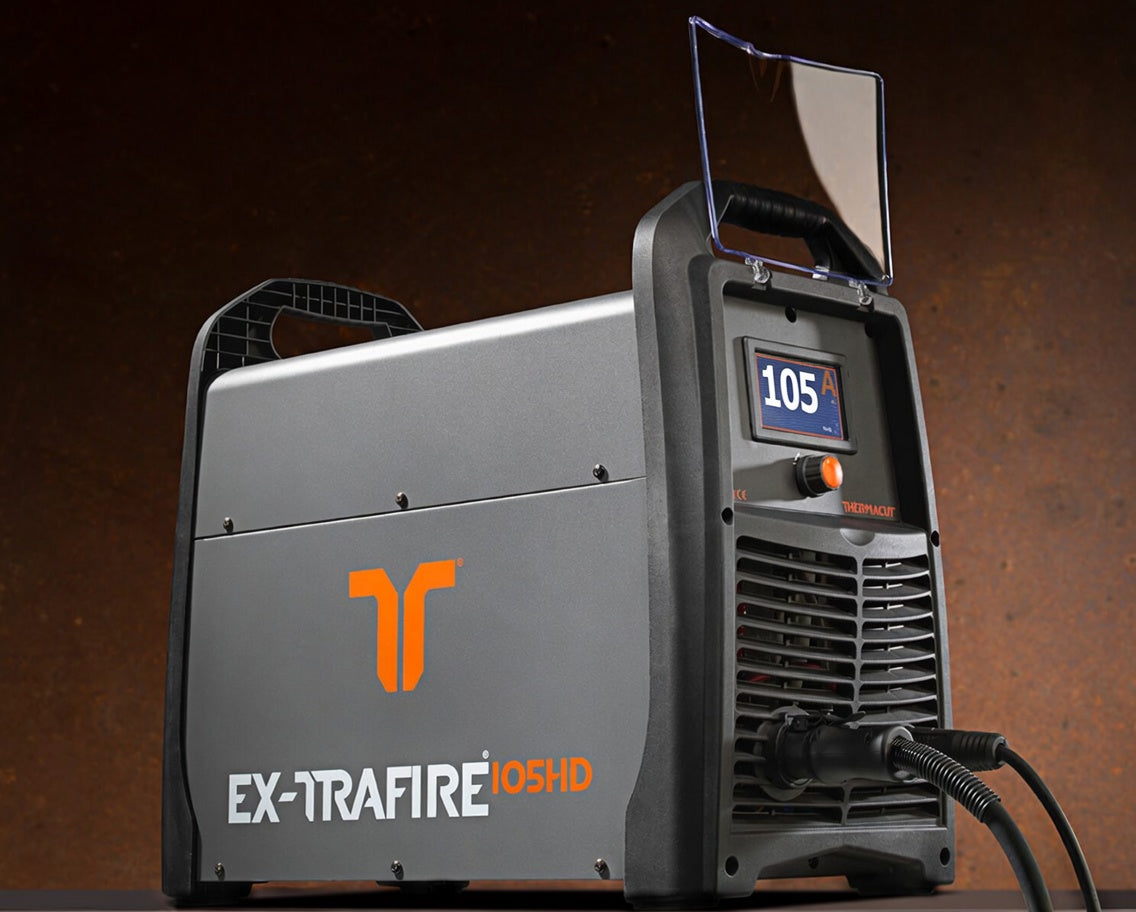

EX-TRAFIRE 105HD Plasma Cutting System
Built for the professional shop.
Industrial-grade plasma cutting built for shops that run hard, every day. The EX-TRAFIRE 105HD delivers clean, fast cuts across mild steel, stainless, and aluminum, stepping up the power and duty cycle for heavier, more demanding cutting jobs.
ZILA is an authorized EX-TRAFIRE dealer. Every system we sell is set up and verified before it reaches your shop, not a box you have to figure out on your own.
SPECIFICATIONS
Cutting current: 20-105 A
Output amperage range: 20-85 A on single-phase input, 20-105 A on three-phase input
Duty cycle: 40% @ 85 A / 100% @ 54 A (1x230V), 55% @ 105 A / 100% @ 77 A (3x208V), 80% @ 105 A / 100% @ 94 A (3x460-575V)
Rated output voltage: 160 VDC
Recommended cut capacity: 1 3/8 in
Severance cut capacity: 2 in
Piercing capacity: 1 in
Gouging removal: 20 lbs/hr
Plasma gas: Air, Nitrogen, or Argon
Input voltage: 1x200-240V / 3x208-575V AC, +/-15%
Dimensions (L x W x H): 24 in x 20 in x 12 in
Weight: 96 lbs
Protection level: IP23S
Torch: FHT-EX 105TT, hand or machine
Specs and pricing shown are preliminary and subject to confirmation. Contact ZILA to verify current specs before ordering.
